Basecamp

Starting from

$129,000 CAD

Basecamp

Starting from

$129,000 CAD

144"
Wheel Base
2
Sleeps
320AH
Battery
AWD
Engine
Floor Plan
Specs
Build Process
Compare
Reviews

BUILT FOR
REAL
ADVENTURES

BUILT FOR REAL
ADVENTURES

The Overland Couple
Two people who want to go deep - forest roads, mountain passes, multi-week off-grid trips with bikes and gear in tow.
The Year-Round Explorer
Doesn't stop in winter, needs diesel heat, winterized water, and all-season capability without compromise
The Gear Hauler
Mountain bikes, ski gear, surf euqipment. The gear garage and pull-out tray keep everything organized and trail-ready
Layout

Floor Plan & Interior Layout

144" wheelbase - every inch designed for function and comfort.

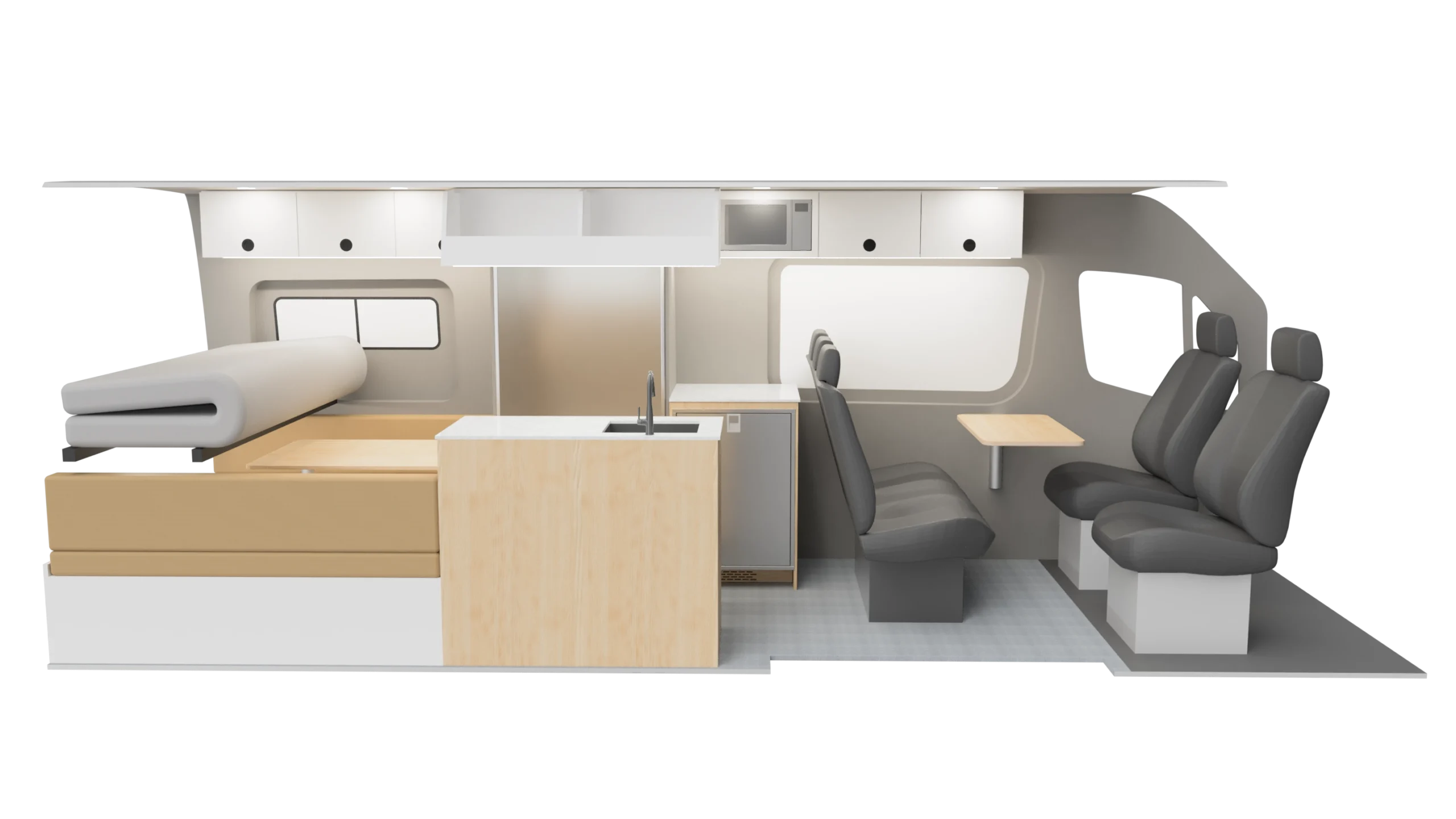

Sprinter Van Conversions - Family Adventurer 170

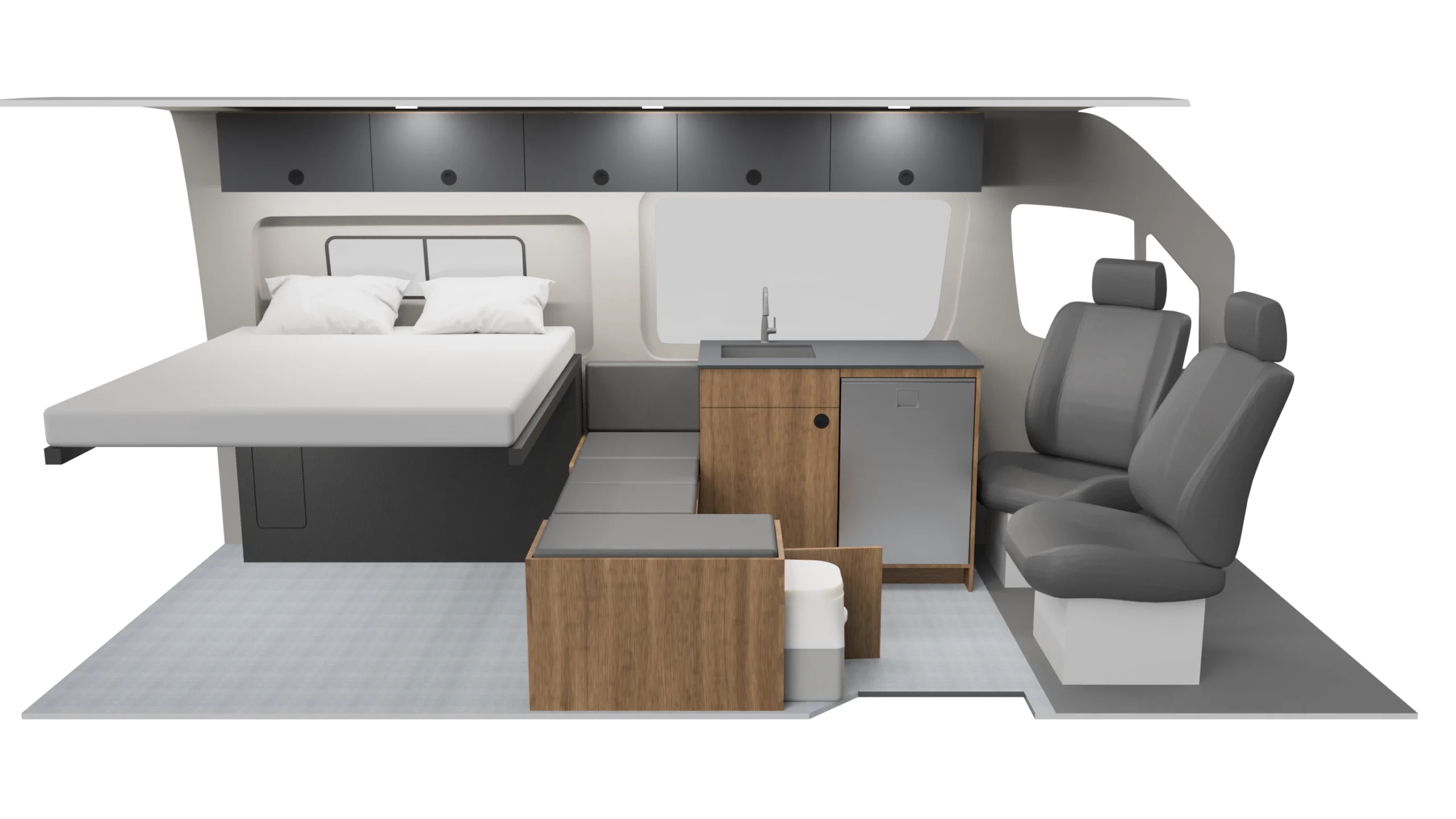

Sprinter Van Conversions - Adventurer 144

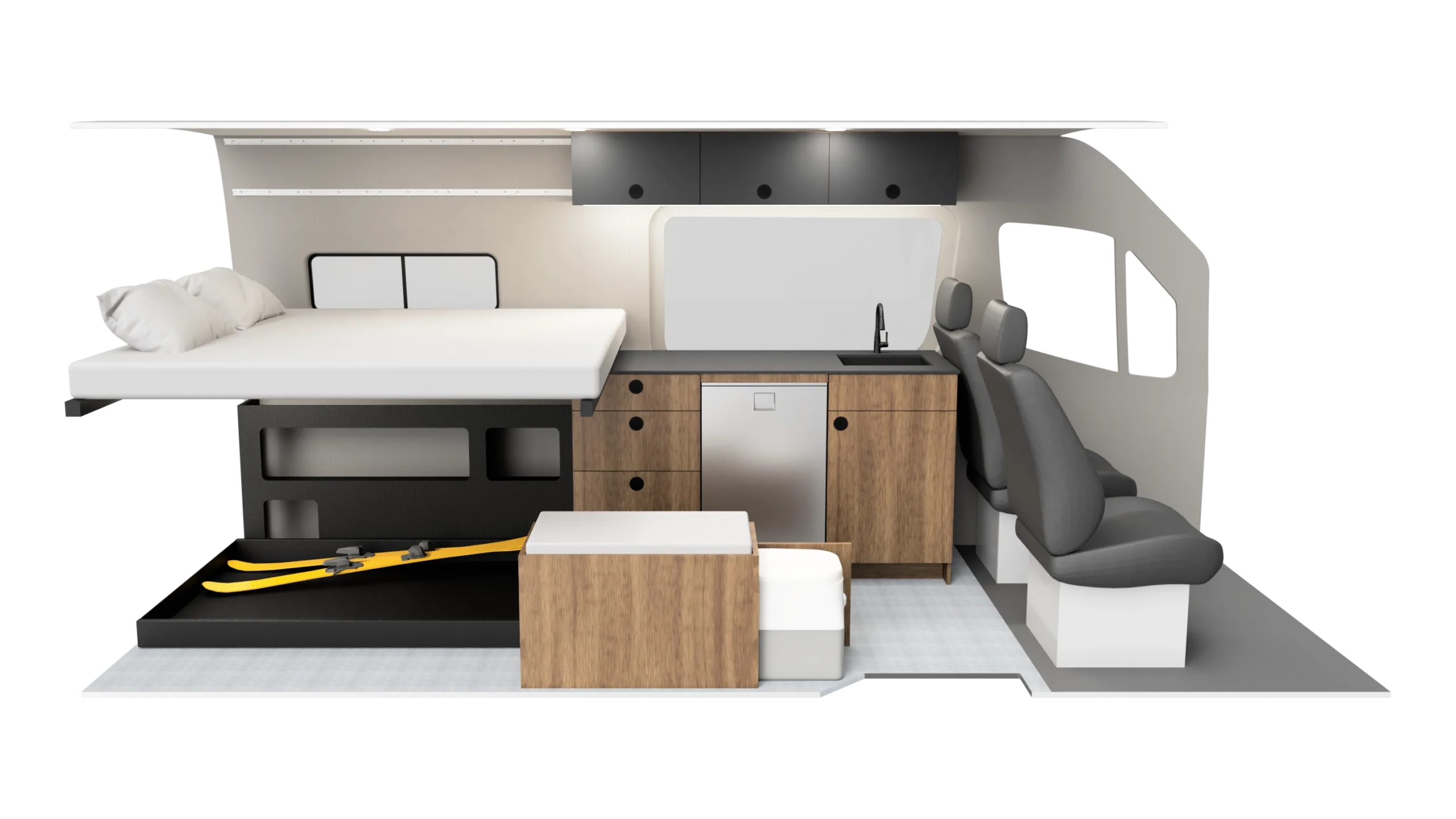

Sprinter Van Conversions - Basecamp 144

Zone Breakdown

Gear Garage

Custom pull-out tray, bike mounts, MOLLE panels, L-Track anchors. Fita 2 full-size MTBs or ski kits.

Bed / Lounge System

670" wide side-to-side bed. Convertible to L-shaped lounge seating for daytime use.

Slide-out Cassette Toilet

Integrated and concealed. Slides out from cabinetry when needed

45" Gallery Kitchen

2-burner stove, sink, 130L, 12V fridge/freezer, winter-friendly water system, rear spray port.

Victron Electrical Centre

320Ah heated lithium, 3000W inverter, Victron MPPT solar controller, touchscreen monitor.

6'1"

Standing Height

60"

Bed Width

80"

Bed Length

20 GAL

Fresh Water
Technical Specifications

Full Specs

Dimensions & Capacity

Wheelbase
144" Standard
Interior Standing Height
~6'1" (74")
Bed Dimensions
60"W x 80"L
Sleeping Capacity
2 Adults
Seating (Driving)
2
Fresh Water Tank
20 GAL Main + 5 GAL Under-Sink
Grey Water
5 GAL Under-Sink

Drivetrain

Base Vehicle
Mercedes-Benz Sprinter AWD
Suspension Upgrades
VanCompass Shocks
Step
AMP Power Drop-Down

Electrical System

Battery Bank
320Ah Heated Lithium
Inverter
3000W Victron
Solar Controller
Victron MPPT
Monitor
Victron Touchscreen Display
Fan / Ventilation
MaxxAir 7500K

Climate & Comfort

Heating System
2kW Diesel Fuelled Heater
Water System
Winter-Friendly (Drainable)
Windows
Rear Sliding Crew + 1/2 Slider Bunks
Toilet
Cassette (Slide-Out)
Build Location
Edmonton, AB, Canada
Your Build Journey

From Deposit to Delivery

a transparent, collaborative process from first call to first road trip.
  1. 1

    Discovery Call

    30-min call to understand your travel style, use case, and budget. No pressure.

  2. 2

    Design & Quote

    Customized layout, feature selection, and detailed quote. Lock in your build.

  3. 3

    Deposit & Schedule

    Secure your build slot with a deposit. Build typically begins within 4-6 weeks.

  4. 4

    Build (10-14 Wks)

    Regular photo updates throughout. Milestone payments at key build stages.

  5. 5

    Delivery & Orientation

    Full walkthrough of every system. Drive away confident and ready to go.

Current average build time: 10-14 weeks - Next available slot: ask us - Financing available through partner lenders.
How it Stacks Up

Compare All MOdels

Basecamp Adventurer Basecamp XL Family Weekend Van
Starting Price 95k 115k 110k
Seats 2 4 5
Sleeps 2 4 4-5
Integrated Toilet Optional Optional -
Water System 5Gal 20Gal 20Gal
Rear Washdown -
Removable Power Station Optional
Integrated Electrical - Optional
Best For Simple setup Family with kids or friends Family
From Our CLients

Adventurer Owners

★★★★★

“Absolutely amazing experience working with Norden Built. Just over a year and 80+ nights with the build and could not be happier. From the design process to the quality of the build everything has lived up to or exceeded our expectations.”

BM
Brett Miles
Google review · Van owner
★★★★★

“Karol and Norden Built staff worked with me for over a year to fit my family of 4 into a great Sprinter 170 custom build. Everyone who has been inside of the van has commented on the craftsmanship and quality of the build.”

CL
Craig Langenfeld
Google review · Custom build
★★★★★

“While traveling across Canada in our campervan, we experienced an unexpected electrical issue. Karol diagnosed and resolved the problem, allowing us to continue our trip with minimal delay.”

BT
Brad Tumminello
Google review · Service visit

Ready to Build Your Adventurer?

Start with a free 30-minute discovery call. No pressure, no sales pitch - just an honest conversation about your needs.
